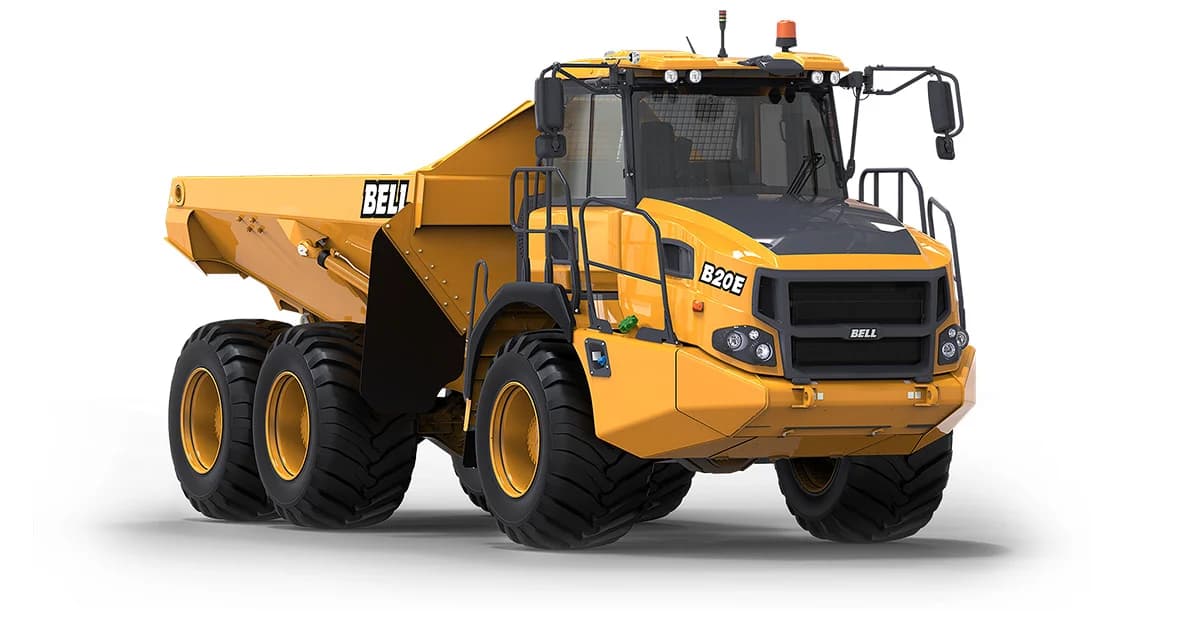

Articulated Haul Truck, 22 Ton
Vehicles and Trailers - Off-Highway Trucks - Articulated Front Dumps / Articulating Haul Truck, 22 Ton
22-ton articulated haul trucks for moving dirt and aggregate over rough terrain. Low-ground-pressure and standard highway models available.
Specifications
MakeBELL / Hydrema
ModelB20E LGP / 922D
Payload Capacity39,683-44,092 lbs (18,000-20,000 kg)
Operating Weight76,044-80,689 lbs GVW
EngineMercedes-Benz OM934LA, 228 hp (BELL) / Cummins QSB6.7-C260, 260 hp (Hydrema)
Heaped Capacity14.5-15.7 cu. yd. (11-12 m³)
Top Speed29 mph (BELL B20E LGP)
Tires800/45 R30.5 (BELL) / 600/60-30.5 (Hydrema)
